| GD-dp系列雙螺母滾珠絲杠 |
|
|
|
單位：mm
|

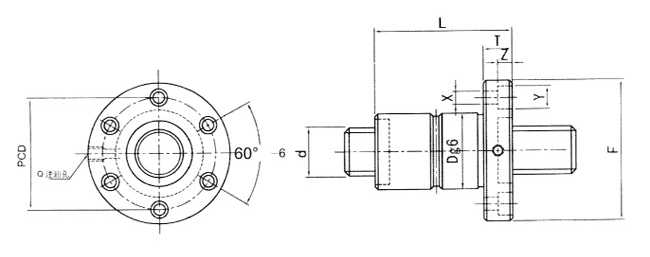

規格型號
|
外徑d
|
導程I
|
鋼珠徑φ
|
軸向鋼性
|
基本額定荷重
|
螺母尺寸
|
安裝孔
|
注油孔
|
|
Kgf/μm
|
動額定負荷Ca
|
靜額定負荷Coa
|
外徑D
|
法蘭徑F
|
螺母長度L
|
法蘭厚度T
|
安裝孔距PCD
|
X
|
Y
|
Z
|
Q
|
|
GD1605-6
|
16
|
5
|
3.175
|
21
|
766
|
1739
|
30
|
49
|
100
|
10
|
39
|
4.5
|
8
|
4.5
|
M6×1
|
|
GD2005-6
|
20
|
5
|
3.175
|
37
|
1014
|
2327
|
34
|
57
|
101
|
11
|
45
|
5.5
|
9.5
|
4.5
|
M6×1
|
|
GD2505-8
|
25
|
5
|
3.175
|
45
|
1536
|
3732
|
40
|
63
|
102
|
11
|
51
|
5.5
|
9.5
|
5
|
M6×1
|
|
GD3205-8
|
32
|
5
|
3.175
|
40
|
1595
|
4565
|
46
|
72
|
102
|
12
|
58
|
6.5
|
11
|
6
|
M8×1
|
|
GD3210-8
|
32
|
10
|
6.350
|
62
|
3677
|
7777
|
54
|
88
|
162
|
15
|
70
|
9
|
14
|
8.5
|
M8×1
|
|
GD4005-8
|
40
|
5
|
3.175
|
65
|
1736
|
5745
|
56
|
90
|
105
|
15
|
72
|
9
|
14
|
8.5
|
M8×1
|
|
GD4010-8
|
40
|
10
|
6.350
|
71
|
5083
|
12376
|
62
|
104
|
165
|
18
|
82
|
11
|
17.5
|
11
|
M8×1
|
|
GD5010-8
|
50
|
10
|
6.350
|
87
|
5685
|
15972
|
72
|
114
|
172
|
18
|
92
|
11
|
17.5
|
11
|
M8×1
|
|
GD6310-8
|
63
|
10
|
6.350
|
103
|
7036
|
21391
|
85
|
131
|
182
|
22
|
107
|
14
|
20
|
13
|
M8×1
|
|
GD8020-12
|
80
|
20
|
7.144
|
326
|
25050
|
90150
|
125
|
200
|
360
|
30
|
152
|
18
|
27
|
16
|
M10×1
|
|
|
