| GD-st系列單螺母滾珠絲杠 |
|
單位：mm
|

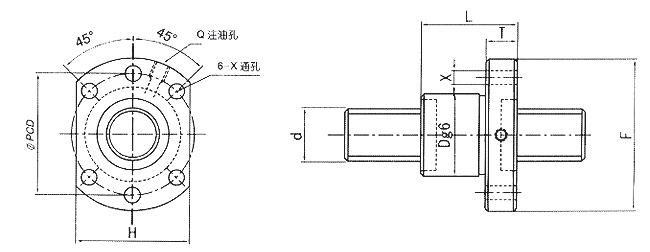

規格型號
|
外徑d
|
導程I
|
鋼珠徑φ
|
軸向鋼性
|
基本額定荷重
|
螺母尺寸
|
|
Kgf/μm
|
動額定負荷Ca
|
靜額定負荷Coa
|
外徑D
|
法蘭徑F
|
螺母長度L
|
法蘭厚度T
|
安裝孔距PCD
|
法蘭寬度H
|
安裝孔X
|
注油孔Q
|
|
GD1605-3
|
16
|
5
|
3.175
|
16
|
618
|
1226
|
28
|
48
|
42
|
10
|
38
|
40
|
5.5
|
M6×1
|
|
GD1605-4
|
16
|
5
|
3.175
|
16
|
824
|
1576
|
28
|
48
|
50
|
10
|
38
|
40
|
5.5
|
M6×1
|
|
GD1610-3
|
16
|
10
|
3.175
|
16
|
618
|
1226
|
28
|
48
|
55
|
10
|
38
|
40
|
5.5
|
M6×1
|
|
GD2005-3
|
20
|
5
|
3.175
|
25
|
901
|
1934
|
36
|
58
|
42
|
10
|
47
|
44
|
6.6
|
M6×1
|
|
GD2010-2
|
20
|
10
|
4.7625
|
25
|
1027
|
2229
|
42
|
66
|
52
|
12
|
54
|
48
|
6.6
|
M6×1
|
|
GD2505-4
|
25
|
5
|
3.175
|
32
|
1133
|
2786
|
40
|
62
|
51
|
10
|
51
|
48
|
6.6
|
M6×1
|
|
GD2510-4
|
25
|
10
|
4.7625
|
32
|
1333
|
3277
|
40
|
62
|
85
|
15
|
51
|
48
|
6.6
|
M6×1
|
|
GD3205-4
|
32
|
5
|
3.175
|
40
|
1263
|
3567
|
50
|
80
|
55
|
12
|
65
|
62
|
9
|
M6×1
|
|
GD3210-4
|
32
|
10
|
6.350
|
39
|
2697
|
6535
|
50
|
80
|
90
|
12
|
65
|
62
|
9
|
M6×1
|
|
GD4005-4
|
40
|
5
|
3.175
|
50
|
1393
|
4458
|
63
|
93
|
55
|
14
|
78
|
70
|
9
|
M8×1
|
|
GD4010-4
|
40
|
10
|
6.350
|
49
|
3496
|
8471
|
63
|
93
|
93
|
14
|
78
|
70
|
9
|
M8×1
|
|
GD5010-4
|
50
|
10
|
6.350
|
61
|
3720
|
10273
|
75
|
110
|
93
|
16
|
93
|
85
|
11
|
M8×1
|
|
|
